Moston Metalurji Ltd. Şti
Kalaylı Bronz

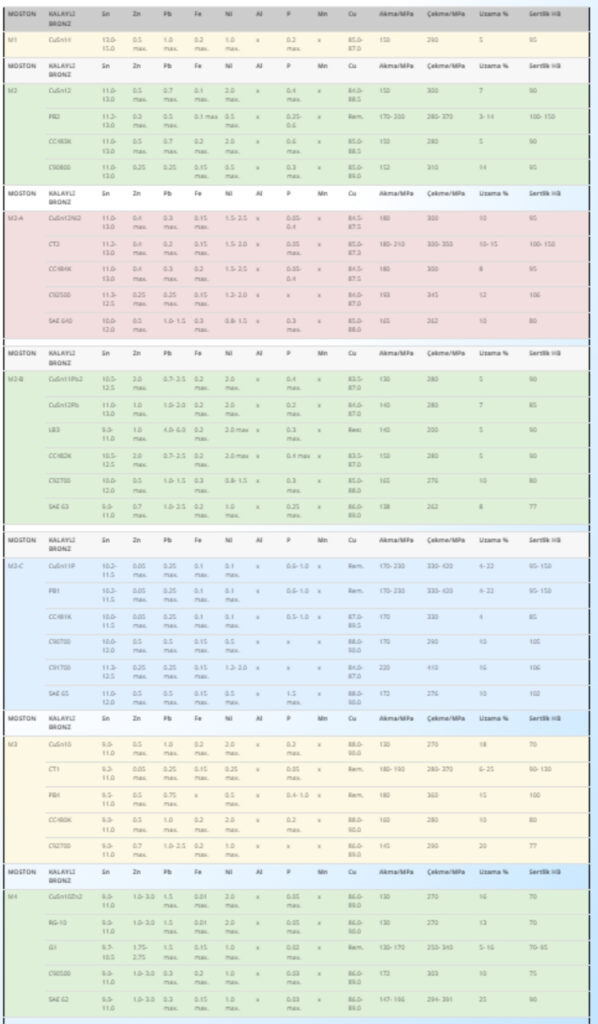

MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M1 | CuSn14 | 13.0- 15.0 | 0.5 max. | 1.0 max. | 0.2 max. | 1.0 max. | x | 0.2 max. | x | 85.0- 87.0 | 150 | 290 | 5 | 95 |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M2 | CuSn12 | 11.0- 13.0 | 0.5 max. | 0.7 max. | 0.1 max. | 2.0 max. | x | 0.4 max. | x | 84.0- 88.5 | 150 | 300 | 7 | 90 |
PB2 | 11.2- 13.0 | 0.3 max. | 0.5 max. | 0.1 max | 0.5 max. | x | 0.25- 0.6 | x | Rem. | 170- 200 | 280- 370 | 3- 14 | 100- 150 | |
CC483K | 11.0- 13.0 | 0.5 max. | 0.7 max. | 0.2 max. | 2.0 max. | x | 0.6 max. | x | 85.0- 88.5 | 150 | 280 | 5 | 90 | |
C90800 | 11.0- 13.0 | 0.25 | 0.25 | 0.15 max. | 0.5 max. | x | 0.3 max. | x | 85.0- 89.0 | 152 | 310 | 14 | 95 | |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M2-A | CuSn12Ni2 | 11.0- 13.0 | 0.4 max. | 0.3 max. | 0.15 max. | 1.5- 2.5 | x | 0.05- 0.4 | x | 84.5- 87.5 | 180 | 300 | 10 | 95 |
CT2 | 11.2- 13.0 | 0.4 max. | 0.2 max. | 0.15 max. | 1.5- 2.0 | x | 0.05 max. | x | 85.0- 87.3 | 180- 210 | 300- 350 | 10- 15 | 100- 150 | |
CC484K | 11.0- 13.0 | 0.4 max. | 0.3 max. | 0.2 max. | 1.5- 2.5 | x | 0.05- 0.4 | x | 84.5- 87.5 | 180 | 300 | 8 | 95 | |
C92500 | 11.3- 12.5 | 0.25 max. | 0.25 max. | 0.15 max. | 1.2- 2.0 | x | x | x | 84.0- 87.0 | 193 | 345 | 12 | 106 | |
SAE 640 | 10.0- 12.0 | 0.5 max. | 1.0- 1.5 | 0.3 max. | 0.8- 1.5 | x | 0.3 max. | x | 85.0- 88.0 | 165 | 262 | 10 | 80 | |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M2-B | CuSn11Pb2 | 10.5- 12.5 | 2.0 max. | 0.7- 2.5 | 0.2 max. | 2.0 max. | x | 0.4 max. | x | 83.5- 87.0 | 130 | 280 | 5 | 90 |
CuSn12Pb | 11.0- 13.0 | 1.0 max. | 1.0- 2.0 | 0.2 max. | 2.0 max. | x | 0.2 max. | x | 84.0- 87.0 | 140 | 280 | 7 | 85 | |
LB3 | 9.0- 11.0 | 1.0 max. | 4.0- 6.0 | 0.2 max. | 2.0 max | x | 0.3 max. | x | Rest | 140 | 200 | 5 | 90 | |
CC482K | 10.5- 12.5 | 2.0 max. | 0.7- 2.5 | 0.2 max. | 2.0 max | x | 0.4 max | x | 83.5- 87.0 | 150 | 280 | 5 | 90 | |
C92700 | 10.0- 12.0 | 0.5 max. | 1.0- 1.5 | 0.3 max. | 0.8- 1.5 | x | 0.3 max. | x | 85.0- 88.0 | 165 | 276 | 10 | 80 | |
SAE 63 | 9.0- 11.0 | 0.7 max. | 1.0- 2.5 | 0.2 max. | 1.0 max. | x | 0.25 max. | x | 86.0- 89.0 | 138 | 262 | 8 | 77 | |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M2-C | CuSn11P | 10.2- 11.5 | 0.05 max. | 0.25 max. | 0.1 max. | 0.1 max. | x | 0.6- 1.0 | x | Rem. | 170- 230 | 330- 420 | 4- 22 | 95- 150 |
PB1 | 10.2- 11.5 | 0.05 max. | 0.25 max. | 0.1 max. | 0.1 max. | x | 0.6- 1.0 | x | Rem. | 170- 230 | 330- 420 | 4- 22 | 95- 150 | |
CC481K | 10.0- 11.5 | 0.05 max. | 0.25 max. | 0.1 max. | 0.1 max. | x | 0.5- 1.0 | x | 87.0- 89.5 | 170 | 330 | 4 | 85 | |
C90700 | 10.0- 12.0 | 0.5 max. | 0.5 max. | 0.15 max. | 0.5 max. | x | x | x | 88.0- 90.0 | 170 | 290 | 10 | 105 | |
C91700 | 11.3- 12.5 | 0.25 max. | 0.25 max. | 0.15 max. | 1.2- 2.0 | x | x | x | 84.0- 87.0 | 220 | 410 | 16 | 106 | |
SAE 65 | 11.0- 12.0 | 0.5 max. | 0.5 max. | 0.15 max. | 0.5 max. | x | 1.5 max. | x | 88.0- 90.0 | 172 | 276 | 10 | 102 | |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M3 | CuSn10 | 9.0- 11.0 | 0.5 max. | 1.0 max. | 0.2 max. | 2.0 max. | x | 0.2 max. | x | 88.0- 90.0 | 130 | 270 | 18 | 70 |
CT1 | 9.2- 11.0 | 0.05 max. | 0.25 max. | 0.15 max. | 0.25 max. | x | 0.05 max. | x | Rem. | 180- 190 | 280- 370 | 6- 25 | 90- 130 | |
PB4 | 9.5- 11.0 | 0.5 max. | 0.75 max. | x | 0.5 max. | x | 0.4- 1.0 | x | Rem. | 180 | 360 | 15 | 100 | |
CC480K | 9.0- 11.0 | 0.5 max. | 1.0 max. | 0.2 max. | 2.0 max. | x | 0.2 max. | x | 88.0- 90.0 | 160 | 280 | 10 | 80 | |
C92700 | 9.0- 11.0 | 0.7 max. | 1.0- 2.5 | 0.2 max. | 1.0 max. | x | x | x | 86.0- 89.0 | 145 | 290 | 20 | 77 | |
MOSTON | KALAYLI BRONZ | Sn | Zn | Pb | Fe | Ni | Al | P | Mn | Cu | Akma/MPa | Çekme/MPa | Uzama % | Sertlik HB |
M4 | CuSn10Zn2 | 9.0- 11.0 | 1.0- 3.0 | 1.5 max. | 0.01 max. | 2.0 max. | x | 0.05 max. | x | 86.0- 89.0 | 130 | 270 | 16 | 70 |
RG-10 | 9.0- 11.0 | 1.0- 3.0 | 1.5 max. | 0.01 max. | 2.0 max. | x | 0.05 max. | x | 86.0- 90.0 | 130 | 270 | 13 | 70 | |
G1 | 9.7- 10.5 | 1.75- 2.75 | 1.5 max. | 0.15 max. | 1.0 max. | x | 0.02 max. | x | Rem. | 130- 170 | 250- 340 | 5- 16 | 70- 95 | |
C90500 | 9.0- 11.0 | 1.0- 3.0 | 0.3 max. | 0.2 max. | 1.0 max. | x | 0.03 max. | x | 86.0- 89.0 | 172 | 303 | 10 | 75 | |
SAE 62 | 9.0- 11.0 | 1.0- 3.0 | 0.3 max. | 0.15 max. | 1.0 max. | x | 0.03 max. | x | 86.0- 89.0 | 147- 196 | 294- 391 | 25 | 90 | |
