Moston Döküm Teknolojileri
Moston Metalurji Ltd. Şti

Nikelli Alüminyum Bronz

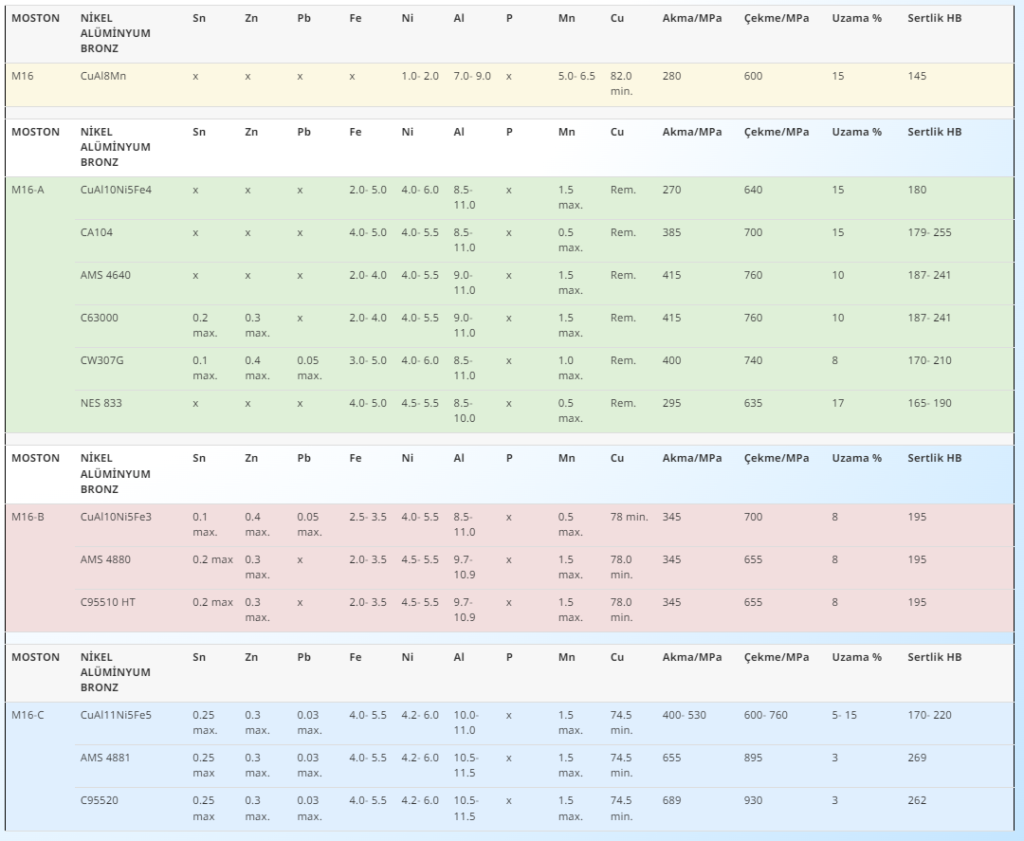

MOSTON NİKEL ALÜMİNYUM BRONZ Sn Zn Pb Fe Ni Al P Mn Cu Akma/MPa Çekme/MPa Uzama % Sertlik HB
M16 CuAl8Mn x x x x 1.0- 2.0 7.0- 9.0 x 5.0- 6.5 82.0 min. 280 600 15 145
MOSTON NİKEL ALÜMİNYUM BRONZ Sn Zn Pb Fe Ni Al P Mn Cu Akma/MPa Çekme/MPa Uzama % Sertlik HB
M16-A CuAl10Ni5Fe4 x x x 2.0- 5.0 4.0- 6.0 8.5- 11.0 x 1.5 max. Rem. 270 640 15 180
CA104 x x x 4.0- 5.0 4.0- 5.5 8.5- 11.0 x 0.5 max. Rem. 385 700 15 179- 255
AMS 4640 x x x 2.0- 4.0 4.0- 5.5 9.0- 11.0 x 1.5 max. Rem. 415 760 10 187- 241
C63000 0.2 max. 0.3 max. x 2.0- 4.0 4.0- 5.5 9.0- 11.0 x 1.5 max. Rem. 415 760 10 187- 241
CW307G 0.1 max. 0.4 max. 0.05 max. 3.0- 5.0 4.0- 6.0 8.5- 11.0 x 1.0 max. Rem. 400 740 8 170- 210
NES 833 x x x 4.0- 5.0 4.5- 5.5 8.5- 10.0 x 0.5 max. Rem. 295 635 17 165- 190
MOSTON NİKEL ALÜMİNYUM BRONZ Sn Zn Pb Fe Ni Al P Mn Cu Akma/MPa Çekme/MPa Uzama % Sertlik HB
M16-B CuAl10Ni5Fe3 0.1 max. 0.4 max. 0.05 max. 2.5- 3.5 4.0- 5.5 8.5- 11.0 x 0.5 max. 78 min. 345 700 8 195
AMS 4880 0.2 max 0.3 max. x 2.0- 3.5 4.5- 5.5 9.7- 10.9 x 1.5 max. 78.0 min. 345 655 8 195
C95510 HT 0.2 max 0.3 max. x 2.0- 3.5 4.5- 5.5 9.7- 10.9 x 1.5 max. 78.0 min. 345 655 8 195
MOSTON NİKEL ALÜMİNYUM BRONZ Sn Zn Pb Fe Ni Al P Mn Cu Akma/MPa Çekme/MPa Uzama % Sertlik HB
M16-C CuAl11Ni5Fe5 0.25 max. 0.3 max. 0.03 max. 4.0- 5.5 4.2- 6.0 10.0- 11.0 x 1.5 max. 74.5 min. 400- 530 600- 760 5- 15 170- 220
AMS 4881 0.25 max 0.3 max. 0.03 max. 4.0- 5.5 4.2- 6.0 10.5- 11.5 x 1.5 max. 74.5 min. 655 895 3 269
C95520 0.25 max 0.3 max. 0.03 max. 4.0- 5.5 4.2- 6.0 10.5- 11.5 x 1.5 max. 74.5 min. 689 930 3 262
